Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller

Ask Lasest Price
Brand Name :	Clirik
Supply Ability :	20 Set/Sets per Month
Price :	$120,000.00/sets 1-4 sets

Add to Cart

Product Details
Company Profile

Spodumene Superfine Micro Powder Grinding Mill YGM Raymond Roller

Product Description

YGM Raymond Roller Mill

Brand: Clirik

Model: YGM
Input size: 0-30 mm
Final product size: 50-500 mesh
Processed Material: Feldspar, calcite, limestone, talc, rare earth, marble, phosphate ore, kaolin, bentonite, gypsum, dolomite and other more than 100 kinds of Moh's hardness no more 6 minerals.
Applications: Metallurgy, construction, mining, chemical industry, etc.

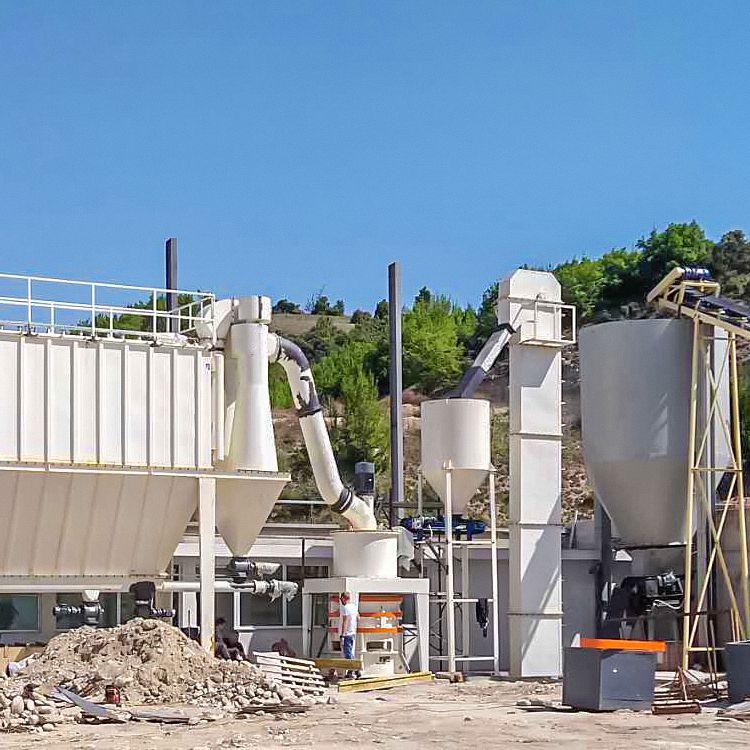

YGM Roller Grinding Machines Superfine Powder Spodumene Raymond Mill

>>>More information welcome to Click Here

Advantages of YGM Raymond Roller Mill

❤High Capacity:
YGM series high pressure suspension grinding mill is upgraded from traditional Raymond mill, which make capacity 20% higher than Raymond mill.

❤Widely Used:
Clirik can supply more than 200 sets YGM series high pressure mills to customers and distributors. YGM series high pressure mills widely used for grinding calcium carbonate, talc, gypsum, feldspar, barite,
pyrophyllite,dolomite,kaolin,coke,etc.

❤Adjusted Output Size:
50 mesh-425 mesh(35-200 micron ).Output size is adjustable by adjusting running speed of classifier.

❤High Capacity and Lower Power Consumption:

Eg: YGM9517 Raymond Roller Mill Parameter for calcium carbonate powder making
Fineness (mesh)	Capacity (T/H)	Power Consumption for one ton powder (Kwh/ton)	Total Line Motors Rated Power:82.5Kw
80-120	5.5-6	13.7-21
180-200	4.5-5	23.2-25.7
300-325	3-3.5	33-38

❤Less Land Covering Space & Less Labor Required:
One set YGM9517 high pressure suspension grinding mill installation cover 48 square meter space, 8 meter height . Total production line need 2-3 workers, one for raw material feeding , one for operation and maintenance , the last one for final packing.

❤Long lifecycle of Wearing Parts:
Our wearing parts made by high Mn material, which is designed by our technical department with Bao Group together. The normal wearing parts includes ring, roller, scraper knife and scraper knife base , normally for grinding calcium carbonate, 10 hours/day, 30days/month, they can work 12-18 months.

Why Choose Us

Our Service

Pre-sale services
Act as a good adviser and assistant of clients; enable them to get rich and generous returns on their investments;
♥ Select equipment model;
♥ Deign and manufacture products according to clients' special requirement;
♥ Train technical personnel for clients.

Services during the sale
Respect clients; devote ourselves to improving the total value of clients.
♥ Pre-check and accept products ahead of delivery;
♥ help clients to draft solution.

After-sales service
Provide considerate services to minimize clients' worries.
♥ Assist clients to prepare for the first construction scheme;
♥ Install and debug the equipment;
♥ Train the first-line operators on site;
♥ Examine the equipment regularly;
♥ Take initiative to eliminate the troubles rapidly at site;
♥ Distribute the guarantee fittings door-to-door;
♥ Provide technical exchanging;
♥ Provide maintenance for big items.

Specification

Model			YGM7815	YGM9517	YGM1280	YGM1300	YGM1620	YGM1720
Roller (piece) / (mm)	Quantity	3	4	3	4	4	4
		Diametwe	260	310	370	410	450	510
		Height	150	170	240	280	300	300
Ring (mm)	Inner Diameter	780	950	1170	1270	1500	1720
Ring (mm)		Height	150	170	240	280	300	300
Feeding Size(mm)			15	25	20	20	20	35
Finished Size(mm)			0.613-0.033
Mill System Power(Kw)			35.7	72.65	145.15	202.15	322.2	450
Capacity(t/h)			1-3	2.1-5.6	4.5-12	6.5-16	8-20	10.5-28
Overall Dimension(m)			433551	715979	935682	918284	12557105	115.595105

------------------------------------------------------------------------------------------------------------

Related Product

Raymond mill is Clirik hot sale powder grinding mills, beside Raymond mill, we also can supply other mining equipment as following...

there are more mining machines>>>Online Store

CLUM Vertical Roller Mill

D50 2 micron meter

150-2500 mesh

1-25 t/h capacity

HGM Ultra Fine Mill

D97 5 micron meter

325-3000 mesh

0.5-45 t/h

Stone Crusher

stone crusher

1-300 t/h

0-8 mm output size

------------------------------------------------------------------------------------------------------------

Working Principle

Working Principle YGM Raymond Roller Mill

The working principle is as follows: load the stuff for grinding evenly and continuously into the grinding chamber of the main frame. Due to the centrifugal force in rotation, the roller swings go outward and presses closely upon the ring. The shovel carries the stuff to the space between the roller and ring. When the roller rolls, the stuff is thus grind. After being grind, the stuff is to be routed to the classifier along wind belt of the blower and the rough powder will be put back to the grinder for regrinding.

The fine powder flows into the cyclone collector together with air flow and is expelled from the powder output pipe as product. In the grinding chamber, since the stuff contains moisture to some extent, the heat generated during grinding makes the moisture evaporate; since the pipeline joints are not airtight, the external air is sucked in and the circulation air mass increases. In order to enable the grinder to work in negative pressure, the increased air flow is guided to the duster and sequentially to the atmosphere after purification.
